gui: walletcontroller showProgressDialogue functional progressBar #17978

RandyMcMillan commented at 11:17 PM on January 21, 2020: contributor

This change takes better advantage of the default "Expanding" policy of the form.

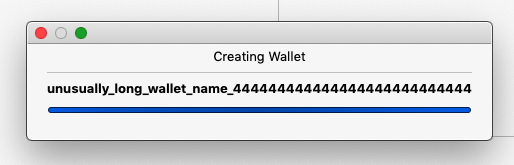

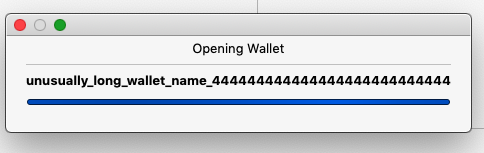

New behavior: Screen Shot 2020-01-21 at 6 04 01 PM Screen Shot 2020-01-21 at 6 06 14 PM

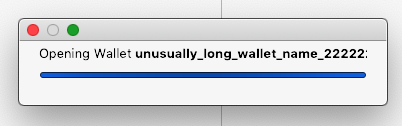

Old behavior: Screen Shot 2020-01-21 at 4 54 09 PM

fanquake added the label GUI on Jan 21, 2020

in src/qt/walletcontroller.cpp:209 in 0fa5fbc1c6 outdated

 205 | @@ -206,7 +206,7 @@ void CreateWalletActivity::askPassphrase()
 206 |
 207 |  void CreateWalletActivity::createWallet()
 208 |  {
 209 | -    showProgressDialog(tr("Creating Wallet <b>%1</b>...").arg(m_create_wallet_dialog->walletName().toHtmlEscaped()));
 210 | +    showProgressDialog(tr("<div align='center'>Creating Wallet</div><hr><wbr /><div align='center'><b>%1</b></div>").arg(m_create_wallet_dialog->walletName().toHtmlEscaped()));

kristapsk commented at 11:58 PM on January 21, 2020:

Why mixing HTML-style <hr> with XHTML-style  in the same line?

RandyMcMillan commented at 12:13 AM on January 22, 2020:

Removing the breaks altogether - looks like the subview will handle it anyway. Good call!

kristapsk commented at 12:15 AM on January 22, 2020:

I'm talking about <hr> vs <hr /> and  vs .

RandyMcMillan commented at 2:35 AM on January 22, 2020:

Thanks for the feedback! 👍

hebasto commented at 10:41 AM on January 22, 2020: member

Concept ACK improving UX w.r.t. long wallet names.

Before seeing an "Opening Wallet" progress dialog, a user enters the long wallet name in the "Create Wallet" dialog. Should the latter be improved in a similar way?

in src/qt/walletcontroller.cpp:290 in 35f984ebbc outdated

 286 | @@ -287,7 +287,7 @@ void OpenWalletActivity::open(const std::string& path)
 287 |  {
 288 |      QString name = path.empty() ? QString("["+tr("default wallet")+"]") : QString::fromStdString(path);
 289 |
 290 | -    showProgressDialog(tr("Opening Wallet <b>%1</b>...").arg(name.toHtmlEscaped()));
 291 | +    showProgressDialog(tr("<div align='center'>Opening Wallet</div><hr><div align='center'><b>%1</b></div>").arg(name.toHtmlEscaped()));

hebasto commented at 10:48 AM on January 22, 2020:

Duplicated code could be moved into the showProgressDialog() body, no?

MarcoFalke commented at 6:10 PM on January 22, 2020:

html code should not be translated

hebasto commented at 11:17 AM on January 22, 2020: member

Testing master on Linux Mint 19.3, I cannot reproduce a truncated line as depicted on your "old behavior" screenshot. My result is:

Screenshot from 2020-01-22 13-14-08

Are you on macOS? If so, it could be related to #15040.

RandyMcMillan commented at 5:58 AM on January 23, 2020: contributor

We can change the title of the view - this allows for more space in the label field for the wallet name.

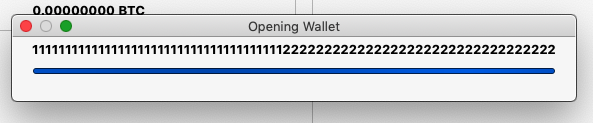

Screen Shot 2020-01-23 at 12 52 45 AM

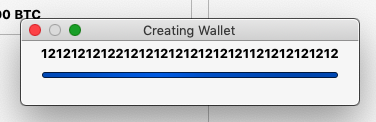

Screen Shot 2020-01-23 at 12 53 06 AM

On a UX side note (IMO) the ellipsis should be taken out of the field. If the text field is showing the entire wallet name then the ellipsis is incorrect because it suggests that some of the text has been obfuscated.

As you can see - an ellipsis is added automatically when appropriate.

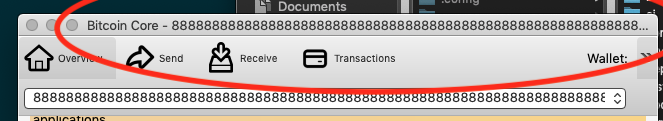

Screen Shot 2020-01-22 at 11 53 01 PM

RandyMcMillan requested review from hebasto on Jan 23, 2020

in src/qt/walletcontroller.cpp:210 in f740c70221 outdated

 206 | @@ -206,7 +207,7 @@ void CreateWalletActivity::askPassphrase()
 207 |
 208 |  void CreateWalletActivity::createWallet()
 209 |  {
 210 | -    showProgressDialog(tr("Creating Wallet <b>%1</b>...").arg(m_create_wallet_dialog->walletName().toHtmlEscaped()));
 211 | +    showProgressDialog(tr("Creating Wallet"), tr("<b>%1</b>").arg(m_create_wallet_dialog->walletName().toHtmlEscaped()));

hebasto commented at 8:31 AM on January 23, 2020:

tr("%1")

#17978 (review) by @MarcoFalke:

html code should not be translated

RandyMcMillan commented at 7:17 PM on January 23, 2020:

A make clean fixed the original UI issue on my end.

I will remove the bold brackets from the commit.

Before the next push

I am going to take another look at the progress bar issue for Mac. I suspect the progress bar isn’t inheriting the size hinting and/or the vertical/horizontal expand flag by default - as it is on Linux.

conceptrat commented at 4:55 AM on January 24, 2020:

Shouldn't really be translating the Wallet Name either right?

emilengler commented at 10:06 AM on January 24, 2020:

I will remove the bold brackets from the commit.

Just append these at before and after the translated string

hebasto commented at 8:34 AM on January 23, 2020: member

@RandyMcMillan

In the OP this screenshot

Old behavior:

shows a bug in the GUI. We saw a similar bug before (#15016). If this PR is intended to fix it (I believe so), it would be nice to find out its cause before proceeding (https://github.com/bitcoin/bitcoin/pull/17978#issuecomment-577134568). If it happens that is a macOS-specific bug, macOS users should be also asked to review this PR.

emilengler commented at 11:39 AM on January 23, 2020: contributor

Isn't it possible to dynamically adjust the frame size according to the wallet name? (Like QWidget::adjustSize())

gui: walletcontroller showProgressDialogue funtional progressBar ac46a5e566

RandyMcMillan renamed this:
~~gui: walletcontroller display long wallet names better~~
gui: walletcontroller showProgressDialogue funtional progressBar
on Jan 25, 2020

RandyMcMillan renamed this:
~~gui: walletcontroller showProgressDialogue funtional progressBar~~
gui: walletcontroller showProgressDialogue functional progressBar
on Jan 25, 2020

RandyMcMillan commented at 7:27 AM on January 25, 2020: contributor

Including a functioning progressBar.

Screeny Video Jan 25, 2020 at 2 22 21 AM

in src/qt/walletcontroller.cpp:176 in ac46a5e566

 174 | +    m_progress_dialog->setRange(0, 100);
 175 | +    m_progress_dialog->setWindowTitle(title_text);
 176 |      m_progress_dialog->setCancelButton(nullptr);
 177 |      m_progress_dialog->setWindowModality(Qt::ApplicationModal);
 178 | +
 179 | +    for ( int i = 1, inc = 1000; i < 60000; ++inc, i += inc )

hebasto commented at 7:56 AM on January 25, 2020:

NACK: this loop knows nothing about actual progress of the wallet controller activity.

promag commented at 12:18 PM on January 30, 2020:

NACK :tada:

in src/qt/walletcontroller.cpp:171 in ac46a5e566

 169 |  {
 170 |      m_progress_dialog = new QProgressDialog(m_parent_widget);
 171 | -
 172 |      m_progress_dialog->setLabelText(label_text);
 173 | -    m_progress_dialog->setRange(0, 0);
 174 | +    m_progress_dialog->setRange(0, 100);

hebasto commented at 7:57 AM on January 25, 2020:

What's wrong with a busy indicator (https://doc.qt.io/qt-5/qprogressbar.html#details)?

RandyMcMillan commented at 9:45 AM on January 25, 2020:

I am glad you said something - this make sense now.

On linux the busy indicator has height and contrast. it actually conveys to the user that something is happening.

On macOS the busy indicator is thin and the colors do not have enough contrast - unless you really look at it the user may not even see that anything is happening.

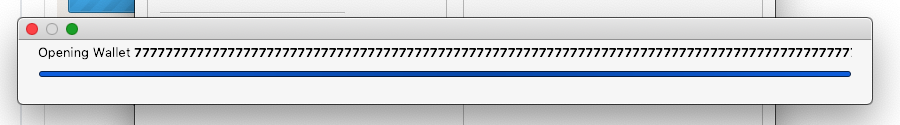

Screen Shot 2020-01-25 at 4 09 34 AM

I scoured the documentation trying to find a height adjustment for the progressBar. There doesn't appear to be one (that is simple to implement).

As you can see - the presentations are very different between Linux and Mac.

Short of writing a custom progressDialogue/Bar - maybe an adjustment to the colors that the progress bar is using will fix the issue.

Maybe selecting a styling that has better contrast across platforms would be better.

Thanks for saving me the time...and thanks for the free lesson on cross platform frameworks.

emilengler commented at 9:52 AM on January 25, 2020:

The height and weight adjustment probably depends on the window manager, not on Qt. Maybe you can try, like I said above, add a QWidget::adjustSize() to adjust the size manually. If you don't know how, I think it you could add m_progress_dialog->adjustSize() on line 175 in walletcontroller.cpp

hebasto commented at 10:26 AM on January 25, 2020:

As you can see - the presentations are very different between Linux and Mac.

Yes, widget look depends on platform. On macOS Qt uses Apple's own APIs for doing the rendering.

hebasto commented at 10:49 AM on January 25, 2020:

Maybe selecting a styling that has better contrast across platforms would be better.

It could help: https://github.com/bitcoin/bitcoin/blob/28fbe68fdcac2a06f359b1e48555a3d23015c2b7/src/qt/bitcoingui.cpp#L173-L180

hebasto commented at 10:53 AM on January 25, 2020:

On macOS the busy indicator is thin and the colors do not have enough contrast - unless you really look at it the user may not even see that anything is happening.

The macOS theme look-and-feel could be a subject of personal opinions, though ;)

emilengler commented at 11:19 AM on January 25, 2020:

I'm personally not a fan of using much style sheets. It just looks very weird to all your other application and I prefer that most applications look native.

hebasto commented at 11:48 AM on January 25, 2020:

I'm personally not a fan of using much style sheets.

me too ;)

RandyMcMillan commented at 7:50 PM on January 26, 2020:

I agree - I appreciate the feedback. I realize that my approach to this is wrong. I think a better approach to this issue has to do with “accessibility” issues. I agree that a lot of UI issues are subject to individual preferences - yet there are standards as well. On Mac there is a very useful tool to conduct “accessibility audits” for UI (Accessibility Inspector) and the GUI falls very short. I will have to research to see if there is a cross platform utility that can test against industry standards for accessibility. Thanks for the feed back.

RandyMcMillan commented at 7:59 PM on January 26, 2020:

I believe better accessibility functionality can/should be a long term consideration to the GUI layout and design but wouldn’t require radical changes to the GUI - QT seems to have robust support for visual and other impairments.

promag commented at 12:21 PM on January 30, 2020:

NACK, I think busy indicator is accessibility friendly regardless of height, contrast etc..

hebasto commented at 8:06 AM on January 25, 2020: member

I suspect the progress bar isn’t inheriting the size hinting and/or the vertical/horizontal expand flag by default - as it is on Linux.

Qt is a cross-platform framework. Therefore, the QProgressBar should work on all supported platforms the same. If you encounter a bug on a particular platform, please provide your platform details. Also it would be nice to report a bug to upstream

promag commented at 12:23 PM on January 30, 2020: member

NACK approach.

RandyMcMillan closed this on Feb 29, 2020

DrahtBot locked this on Feb 15, 2022
